Triaxial ICP® Accelerometer Rental

Take Simultaneous Multi-Axis Measurements

Triaxial accelerometers are designed with three orthogonal sensing elements to enable simultaneous multi-axis measurements (x-, y-, and z-axis). Smaller units minimize mass loading effects and permit installation into confined areas. A unit with a tapped hole in its base may be secured with a screw passing through the object under test to aid in axis alignment, or may be stud-mounted to a separate adhesive mounting base.

These units typically feature a 4-pin electrical connector (for a single cable hook-up) or an integral 4-conductor cable. Types include High Temperature, Miniature, General Purpose, Modal Array, Shock, Seat Pad, or Filtered accelerometers. See accessories for additional mounting equipment or calibration notes for information on calibration. Contact us for detailed selection assistance, or for unique requirements not shown.

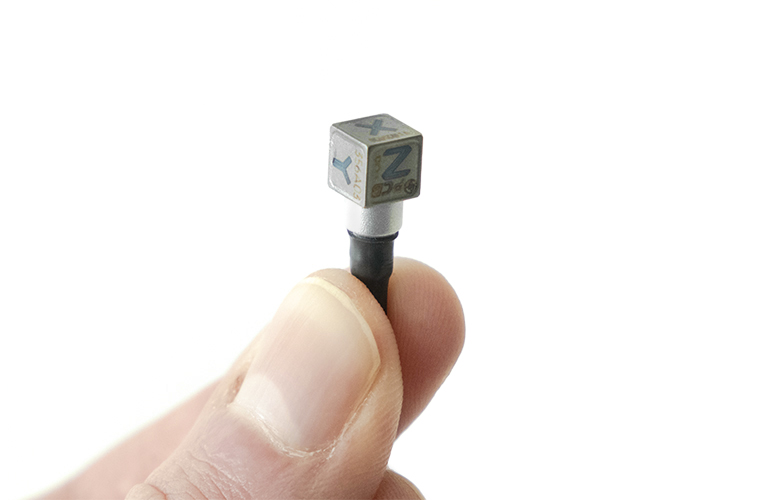

Miniature Accelerometers

Lightweight ceramic shear design, titanium cased hermetically sealed units that minimize effects of mass loading. Some units available with TEDS (Transducer Electronic Data Sheet) and high temperature options.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
356A05View Details20k0.2511.26k10k0.0435k-65 to +3250.8 ✔
356A04View Details5k111.26k10K0.0210k-65 to +3250.8 ✔
356A01View Details1k5-28k*-0.00310k-65 to +2501 ✔
356A06* **View Details1k5-28k**-0.00310k-65 to +2501
✔
356A03*View Details50010-28k*-0.0035k-65 to +2501 ✔
356A09* **View Details50010-28k**-0.0035k-65 to +2501
✔
TLD356A03/NC*View Details50010-28k**-0.0035k-65 to +2501
✔

*Frequency ranges vary across axes, see full specifications below for all frequency ranges
**Does not have an integral cable

356A05 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Dytran 3133A5

356A04 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356A04 is also available and includes a 5ft breakout cable to BNC, model 034G05. Use model 356A04/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: Endevco 35C-2, Dytran 3133A4

356A01 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356A01 is also available and includes a 5ft breakout cable to BNC, model 034G05. Use model 356A01/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: Endevco 35A, Dytran 3133A3

356A06 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • Miniature 1/4" titanium cube triaxial sensor
  • ±1000g range
  • 1 gram mass
  • adhesive mounting
  • Base model 356A06 includes a 10 ft breakout cable to BNC, model 034K10
  • Model 356A06/NC (No Cable) option available; use your own cable or select custom length (use 034K cable)
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A03 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Dytran 3133A1

356A09 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • Miniature 1/4" titanium cube triaxial sensor
  • ±500g range
  • 1 gram mass
  • adhesive mounting
  • Base model 356A09 includes a 10 ft breakout cable to BNC, model 034K10
  • Model 356A09/NC (No Cable) option available; use your own cable or select custom length (use 034K cable)
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

TLD356A03/NC Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS 1.0 compliant (TEDS notes)
  • Ceramic Shear ICP
  • ±500g range
  • 1 gram mass
  • Adhesive mounting
  • Base model 356A09 includes a 10 ft breakout cable to BNC, model 034K10
  • 10 mV/g sensitivity
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

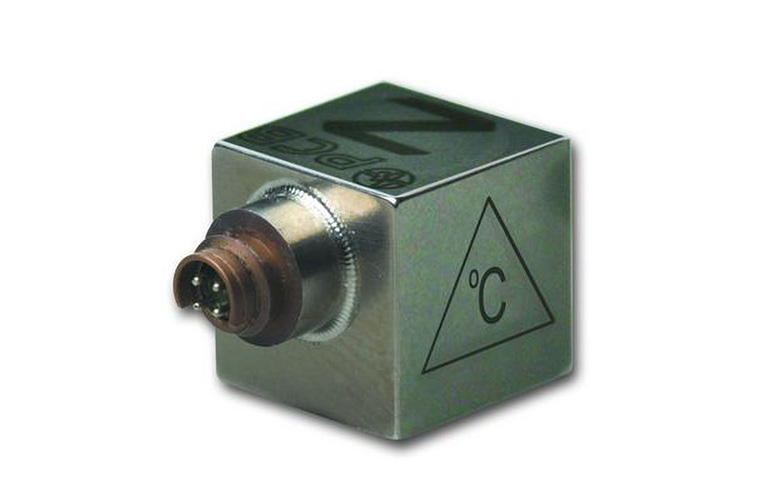

General Purpose Accelerometers

This range of hermetically sealed 10.5 gram titanium triaxial accelerometers is our most popular style, and covers a wide range of uses. Applications vary widely and include general vibration testing, motor and pump monitoring, design studies, and vibration control. Many units are available with optional TEDS (Transducer Electronic Datasheet) built in to simplify test setup with a TEDS capable DAQ system.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
356B20View Details5k1-210k*-0.037k-65 to +2504✔✔
354C02View Details500100.30.52k4k0.00055k-65 to +250 15.5
356A43View Details500100.40.77k10k0.00085k-65 to +2504.2
J356A43View Details500100.40.77k10k0.00085k-65 to +2505.7
356A02View Details500100.515k6k0.00057k-65 to +25010.5✔
356B21View Details50010-210k*-0.00410k-65 to +2504✔✔
356A19View Details500100.6113k*15k0.0610k-65 to +2504✔
356A32View Details501000.714k5k0.00035k-65 to +2505.4✔✔
356A45View Details501000.40.77k10k0.00055k-65 to +1854.2
TLD356A14View Details501000.30.55k6k0.00017k-65 to +17610.5✔
356A15View Details501001.425k6.5k0.00027k-65 to +25010.5✔
TLD356A16View Details501000.30.55k*6k0.00017k-65 to +2507.4✔
TLD356A17View Details105000.40.53k4k0.000065k-65 to +1769.3✔



*Frequency ranges vary across axes, see full specifications below for all frequency ranges

356B20 General Purpose Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356B20 is also available and includes a 10ft breakout cable to BNC, model 034K10. Use model 356B20/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: B&K 4520-002, Dytran 3023A9, Endevco 65HT-1, B&K 4520-002

354C02 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • High temperature version available
  • TEDS version available (TEDS notes)
  • 0.815" hex x 0.45" height titanium triaxial sensor
  • ±500g range
  • 15.5 gram mass
  • Ring-style design with thru-hole mounting simplifies axis and connector orientation
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 039A23 - Allen wrench, 5/32" hex
  • 081B60 - Insulated cap screw, 10-32 thd x 5/8" long
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A43 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS 1.0 compliant (TEDS notes)
  • 0.40"x0.75"x0.40" titanium cube triaxial sensor
  • ±50g range
  • 4.2 gram mass
  • Adhesive mount
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

J356A43 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS 1.0 compliant (TEDS notes)
  • 0.40"x0.75"x0.40" titanium cube triaxial sensor
  • ±50g range
  • 5.7 gram mass
  • Adhesive mount
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

356A02 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • High temperature, TEDS, and high temperature with TEDS versions available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356B21 General Purpose Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B

356A19 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • 4 gram mass
  • 10 mV/g sensitivity
  • ± 500 g pk measurement range
  • 1 Hz to 13 k Hz (± 5%) frequency range
  • Adhesive Mount
  • Ceramic Shear ICP
  • TEDS 1.0 compliance
  • Includes 034G05 low outgassing cable
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B

356A32 General Purpose Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A45 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.4"x0.75"x0.4" titanium triaxial sensor
  • ±50g range
  • 4.2 gram mass
  • adhesive mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

TLD356A14 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS compliant(TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±50g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A15 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±50g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

TLD356A16 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS compliant(TEDS notes)
  • 0.55"x0.8"x0.55" anodized aluminum cube triaxial sensor
  • ±50g range
  • 7.4 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

TLD356A17 General Purpose Triaxial Accelerometer Rental

Key Specifications
  • TEDS compliant(TEDS notes)
  • 0.55"x0.8"x0.55" anodized aluminum cube triaxial sensor
  • ±10g range
  • 9.3 gram mass
  • 5-40 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A145 - Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/isolating hardcoat finish
  • 081A27 - Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

Modal Array Accelerometers

Suited for traditional experimental modal analysis or operational modal analysis, with tight phase specification vital for global parameter estimation. TEDS enabled units help channel bookkeeping when used with compatible systems.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
TLD356A17View Details105000.40.53k4k0.000065k-65 to +1769.3✔
TLD356B18View Details510000.30.53k5k0.000055k-20 to +17025✔
TLD356M98View Details510000.30.53k5k0.000055k-20 to +17039✔

TLD356A17 Modal Array Accelerometer Rental

Key Specifications
  • TEDS compliant(TEDS notes)
  • 0.55"x0.8"x0.55" anodized aluminum cube triaxial sensor
  • ±10g range
  • 9.3 gram mass
  • 5-40 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A145 - Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/isolating hardcoat finish
  • 081A27 - Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

TLD356B18 Modal Array Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.8"x1.03"x0.8" Aluminum cube triaxial sensor
  • ±5g range
  • 25 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A68 - Adhesive mounting base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Kistler 8762A5

TLD356M98 Modal Array Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.8"x1.03"x0.8" titanium cube triaxial sensor
  • ±5g range
  • 39 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A68 - Adhesive mounting base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

High Temperature Accelerometers

Adjusted circuitry allows measurement of these units in temperatures to +325°F (163°C) and are used with traditional ICP power systems. Slight low frequency and broadband resolution specifications may be affected.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
HT356B20View Details5k1-210k*-0.037k-65 to +3254✔✔
HT356B01View Details1k5-28k*-0.00310k-65 to +3561 ✔
HT356A43View Details500100.40.77k10k0.00085k-65 to +3254.2✔
HTJ356A43View Details500100.40.77k10k0.00085k-65 to +3255.7

HTTLD356A02View Details500100.715k6k0.00087k-65 to +32510.5✔
HT356A66View Details50010-24k*-0.0027k-65 to +3259✔
HT356B21View Details50010-210k*-0.00410k-65 to +3254✔✔
HT356A33View Details50010-210k*-0.00410k-65 to +3255.3✔
HT356A44View Details10050-127k*-0.0015k-65 to +3254.2
HT356A15View Details501007105k6.5k0.00027k-65 to +32510.5✔

*Frequency ranges vary across axes, see full specifications below for all frequency ranges

HT356B20 High Temperature Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B

HT356B01 High Temperature Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Endevco 35A, Dytran 3133A3

HT356A43 High Temperature Miniature Accelerometer Rental

Key Specifications
  • TEDS 1.0 compliance (TEDS notes)
  • 0.4"x0.75"x0.4" titanium cube triaxial sensor
  • ±500g range
  • 4.2 gram mass
  • Adhesive mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HTJ356A43 High Temperature Miniature Accelerometer Rental

Key Specifications
  • TEDS 1.0 compliance (TEDS notes)
  • 0.4"x0.75"x0.4" titanium cube triaxial sensor
  • ±500g range
  • 5.7 gram mass
  • Adhesive mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HTTLD356A02 High Temperature Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356A66 High Temperature Accelerometer Rental

Key Specifications
  • 0.55"x0.80"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 9.0 gram mass
  • 10-32 Female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356B21 High Temperature Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B

HT356A33 High Temperature Accelerometer Rental

Key Specifications
  • 0.4"x0.77"x0.4" titanium cube triaxial sensor
  • ±500g range
  • 5.3 gram mass
  • 5-40 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356A44 High Temperature Accelerometer Rental

Key Specifications
  • 0.4"x0.75"x0.4" titanium cube triaxial sensor
  • ±100g range
  • 4.2 gram mass
  • adhesive mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356A15 High Temperature Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Shock Accelerometers

Series 350 ICP mechanically isolated, electrically filtered pyroshock accelerometers are designed to withstand and measure extreme high-level, short-duration transient accelerations. These units are ideal for measuring harsh pyroshock events such as found in metal-to-metal tests, impacts and armor testing, explosive studies, pile driver monitoring, and simulated pyroshock events. High-g shock calibration is included with rental of 350 Series units.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
350B42*View Details50k0.1-410k-0.5150k-10 to +15027
✔
350B50*View Details10k0.51.5310k20k0.0325k-65 to +2508✔✔
350A43**View Details10k0.5-0.410k-0.0450k0 to +15062.5 ✔
350B43**View Details10k0.5-0.410k-0.0450k0 to +15062.5



*Frequency ranges specified at ±1 and ±3 dB for 350B50 sensor
**Frequency range specified at ±1 dB for 350A43, 350B43, and 350B42 sensors. See below for full specifications.

350B42 Shock Accelerometer Rental

Key Specifications Rental Includes
  • 081A112 - 6-32 thread x 1/2" long insulated cap screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response from 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

350B50 Shock Accelerometer Rental

Key Specifications Rental Includes
  • 080A197 - Through hole mounting adaptor
  • 081A112 - 6-32 thread x 1/2" long insulated cap screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

350A43 Shock Accelerometer Rental

Key Specifications Rental Includes
  • 100-8994-40 - Coupling grease
  • 100-8360-70 - STD mounting screw (1/4-28 x 1.5" long) (qty 2)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

350B43 Shock Accelerometer Rental

Key Specifications
  • 1.02"x1.02"x1.02" titanium triaxial sensor
  • ±10000g range
  • 27 gram mass
  • Through hole mounting
  • 5-ft integral cable terminating in 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 100-16040-40 - Metric mounting screws (M6x1.0 x 22mm long
  • 100-8994-40 - Coupling grease
  • 100-8360-70 - STD mounting screw (1/4-28 x 1.5" long) (qty 2)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

354a04 Case Isolated Triaxial AccelerometerCase Isolated Accelerometers

Case isolated accelerometers ensure measurement accuracy in the presence of electrical noise sources, such as EMI and ground loops. They utilize ceramic sensing elements in a shear arrangement, offering high output and low noise for excellent signal to noise ratio. Their case-isolated design with titanium housing provides ruggedness and much improved longevity over use of non-isolated accelerometers with insulated coatings or polyimide tape.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (g pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
354B04View Details50010-0.410k-.00055k-65 to +20014.5✔
354B05View Details50100-0.410k-.00035k-65 to +20014.5✔

354B04 Case Isolated Accelerometer Rental

Key Specifications
  • 0.38"x0.82"x0.82" titanium triaxial sensor
  • ±500 g range
  • 14.5 gram mass
  • Through Hole mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cables
  • Full specs from manufacturer
Rental Includes
  • Model 081A105 Mounting screw (6-32 x ½ in)
  • Model M081A103 Mounting screw and washer
  • (M3 x 0.5) Model 039A22 Allen wrench for 6-32 screw
  • Model M039A22 Allen Wrench for M3 screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 5 Hz to 100 Hz (TMS: 5 Hz to 1000 Hz, MCS-A001 or PCB: 0.5 Hz to 100 Hz, ACS-17). See notes on calibration for additional information

354B05 Case Isolated Accelerometer Rental

Key Specifications
  • 0.38"x0.82"x0.82" titanium triaxial sensor
  • ±50 g range
  • 14.5 gram mass
  • Through Hole mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cables
  • Full specs from manufacturer
Rental Includes
  • Model 081A105 Mounting screw (6-32 x ½ in)
  • Model M081A103 Mounting screw and washer
  • (M3 x 0.5) Model 039A22 Allen wrench for 6-32 screw
  • Model M039A22 Allen Wrench for M3 screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 5 Hz to 100 Hz (TMS: 5 Hz to 1000 Hz, MCS-A001 or PCB: 0.5 Hz to 100 Hz, ACS-17). See notes on calibration for additional information

339a30 Triaxial AccelerometerFiltered Accelerometers

High frequency, metal-to-metal impacts can excite the high frequency resonance of the piezoelectric crystal in any accelerometer to saturate the signal and cause clipping in the contained ICP signal conditioning amplifier. Filtered accelerometers minimize the opportunity for erroneous frequency content to be generated and accepted as valid data.

Interested in high amplitude events? All Shock accelerometers we rent also are filtered
(click on the Shock tab)

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
TLD339A37View Details501000.20.34k7k.0025k-65 to +35610.5✔✔
339A30View Details50010-28k-.0085k-65 to +3254 ✔
356A66View Details50010-24k-.0027k-65 to +2509✔

TLD339A37 Filtered Accelerometer Rental

Key Specifications
  • 0.55"x0.80"x0.55" titanium triaxial sensor
  • ±50 g range
  • 10.5 gram mass
  • 5-40 Female mounting
  • 1/4-28 4-Pin jack used with 010G, 034G, or 078G series cables
  • Full specs from manufacturer
Rental Includes
  • Mounting stud, 5-40 to 5-40 thread, w/o shoulder, BeCu
  • Model M081A103 Mounting screw and washer
  • (M3 x 0.5) Model 039A22 Allen wrench for 6-32 screw
  • Model M039A22 Allen Wrench for M3 screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 5 Hz to 100 Hz (TMS: 5 Hz to 1000 Hz, MCS-A001 or PCB: 0.5 Hz to 100 Hz, ACS-17). See notes on calibration for additional information

339A30 Filtered Accelerometer Rental

Key Specifications
  • 0.4"x0.4"x0.4" titanium triaxial sensor
  • ±500 g range
  • 4 gram mass
  • Adhesive mounting
  • 8-36 4-pin jack used with 034K cable series
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A66 Filtered Accelerometer Rental

Key Specifications
  • 0.55"x0.80"x0.55" titanium triaxial sensor
  • ±500 g range
  • 9 gram mass
  • 10-32 Female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish
  • 081B05 - 10-32 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Notes on Calibration

Calibration data is provided electronically (on CD or USB memory stick) or as printed copies, depending on quantity rented and end-user preference.

The Modal Shop has internal calibration intervals set for most test products at 1 year. ANSI/ISO/IEC 17025:2000 makes clear that it is the responsibility of the end-user organization (in this case, the renter) to determine the appropriate calibration interval under the requirements of its own quality system. Per this, calibration certificates of rented equipment have "calibrated on" dates, but blank "calibration due" dates. Rentals ship with a customer specific expected return date in mind – if equipment is expected out for 5 months, the last calibration date will be within the past 7 months. Calibration to additional standards (e.g. Z540 or specific FAA requirements) are possible, but there may be an additional charge.

The Modal Shop's Scope of Accreditation can be found here. An example of a calibration certificate can be found here. Please contact us with questions or if a different calibration will be needed for your rental sensors.

Notes on TEDS (Transducer Electronic Data Sheet)

The TEDS option is available on several rental transducers. TEDS stands for Transducer Electronic Data Sheet and provides memory within a sensor with manufacturer name, sensor type, model number, serial number and calibration data. It is an approved IEEE standard (1451.4), and many data acquisition manufacturers include the ability to read TEDS sensors. Not sure if your DAQ has TEDS capability? No problem; TEDS sensors can be used alongside non-TEDS sensors with no issues; the TEDS memory is bypassed. Want more information? See our TEDS FAQ.
